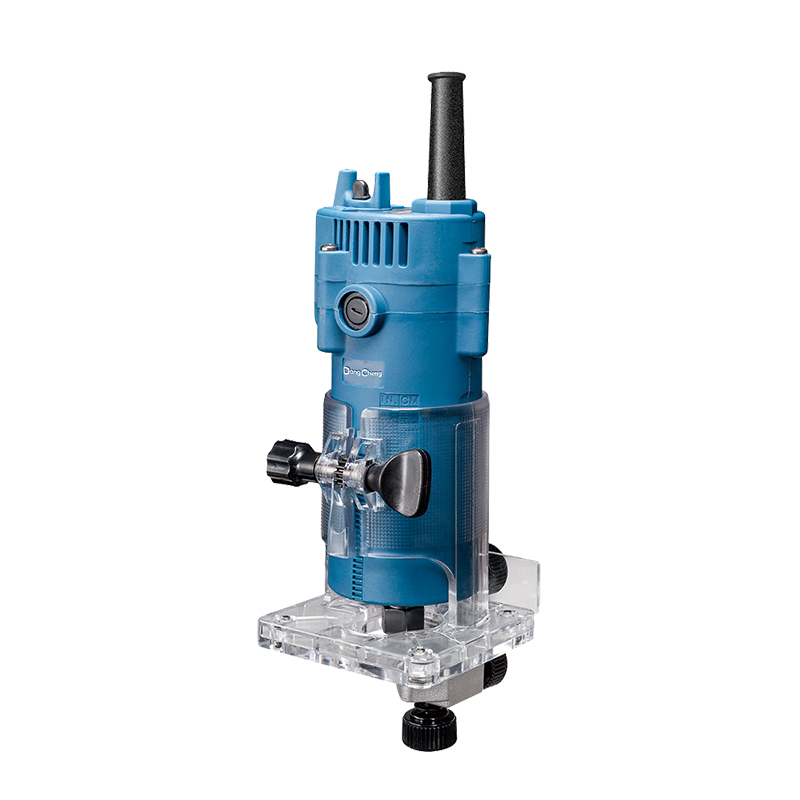

Laminate Trimmer DMP02-6
₨8,100.00
The Dong Cheng DMP02-6 Laminate Trimmer is a compact, high-precision routing tool designed for laminate trimming, edge profiling, veneer flush-cutting, and detailed cabinetry work. Powered by a 350W motor running at an ultra-fast 30,000 RPM, it provides clean, splinter-free cuts on wood veneers, plastics, and laminates. Featuring a crystal-clear transparent acrylic base, it ensures total bit visibility and line-of-sight tracking for fine decorative woodcraft and joinery tasks.
Key Features
-
High-Speed 350W Motor: Delivers a rapid 30,000 RPM for ultra-smooth edge trimming and splinterless flush cuts.
-
Transparent Acrylic Base: Provides complete visibility of the cutting bit and workpiece surface for pinpoint routing accuracy.
-
Compact Single-Handed Ergonomics: Slim motor housing allows easy, fatigue-free one-handed guidance along narrow edges and curves.
-
Universal 6.35 mm (1/4″) Collet: Compatible with standard 1/4″ shank trimming, chamfering, and profiling router bits.
-
Comprehensive Guide Package: Outfitted with straight, roller trimmer, and template guides for precise straight-line routing and pattern following.
Technical Specifications
| Specification | Details |
| Model | DMP02-6 |
| Rated Power Input | 350 W |
| No-load Speed | 30,000 RPM |
| Max. Milling Cutter Diameter | Φ6.35 mm (1/4″) |
| Collet Size | 6.35 mm (1/4″) |
| Base Material | Transparent Acrylic |
| Net Weight | 1.8 kg |
Package Includes
-
1 × Dong Cheng Laminate Trimmer (DMP02-6)
-
1 × Straight Guide
-
1 × Trimmer Guide Assembly (Roller Guide)
-
1 × Templet Guide
-
2 × Dedicated Wrenches
-
1 × Set of Carbon Brushes
-
1 × User Manual & Color Box Packaging
